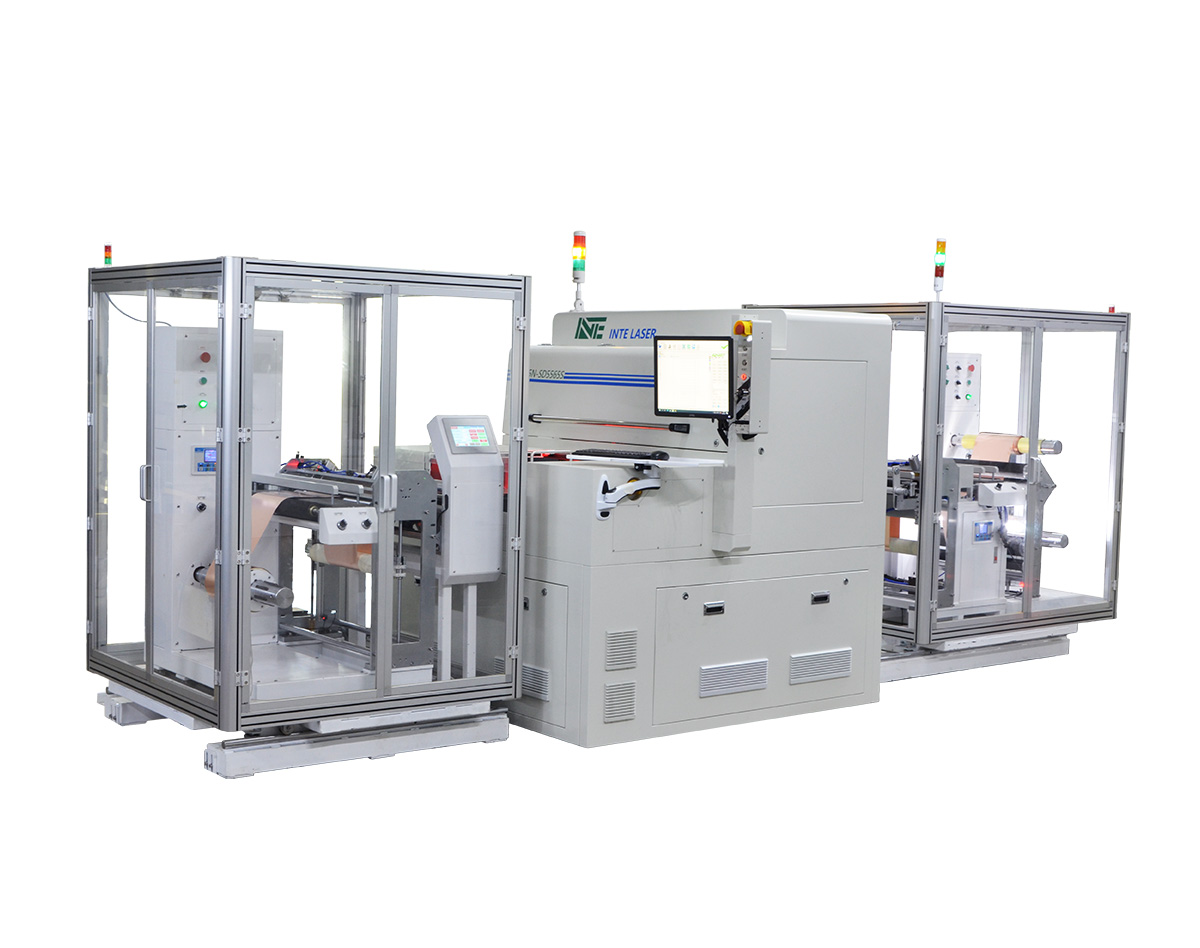

In the fast-paced world of high-precision manufacturing, the ability to adapt to different material forms is a game-changer. Roll-to-Sheet Laser Drilling Equipment stands out by seamlessly switching between roll materials (like flexible FPCs) and sheet materials (such as rigid PCBs or glass), meeting the diverse needs of industries ranging from electronics to consumer tech. This flexibility, paired with high precision, makes it an indispensable tool for manufacturers aiming to boost efficiency without sacrificing quality. Let’s dive into its key applications, how the switching works, and address common questions.
Key Applications Across Industries
Electronics Industry
The electronics sector relies heavily on precise drilling for circuit boards. For rigid PCB production (sheet materials), the equipment drills 0.1–0.5mm diameter holes to connect layers—critical for ensuring smooth current flow in smartphones and laptops. When switching to flexible FPCs (roll materials) used in wearable devices, it adjusts instantly to handle the thin, bendable material, drilling micro-holes as small as 0.05mm without causing material damage. This flexibility means a single factory line can produce both PCB and FPC components, cutting down on equipment costs and saving floor space.
Consumer Electronics Industry
In consumer tech, products like smartwatch screens and camera modules use glass or sapphire sheets, while wireless charger coils rely on roll-form copper foils. The equipment drills precise holes in glass sheets (for sensor installation) and then switches to roll copper foils (for coil wiring) in under 5 minutes. For example, when making wireless chargers, it drills 0.08mm holes in the roll copper foil to enable heat dissipation—consistent hole depth (±0.003mm) ensures the coil works efficiently without overheating. This adaptability helps consumer tech brands keep up with frequent product design changes.
New Energy Industry
New energy battery components, such as battery electrode sheets (roll materials) and insulation boards (sheet materials), also benefit from this equipment. It drills 0.2mm holes in roll electrode sheets to improve electrolyte absorption, then switches to sheet insulation boards to drill positioning holes. The stable performance ensures each hole meets safety standards—too large a hole in the insulation board could lead to short circuits, while too small affects assembly. For battery factories with high-volume production needs, the equipment processes up to 300 sheets or 50 meters of roll material per hour.
How Flexible Switching Works
The equipment uses a modular design with adjustable feeding systems. For roll materials, a motorized unwinding unit feeds the material evenly under the laser head, with tension control to prevent stretching. For sheet materials, a precision positioning table lifts and secures the sheet, aligning it with the laser’s drilling path. The software stores pre-set parameters for common materials—switching from a 1m-wide roll FPC to a 300x300mm sheet PCB only requires selecting the material type on the touchscreen; the equipment automatically adjusts feeding speed, laser power, and hole spacing. This seamless transition takes 3–5 minutes, far faster than traditional equipment that needs full reconfiguration.
Frequently Asked Questions (FAQs)
Q: Does switching between roll and sheet materials affect drilling precision?
A: Not at all! The equipment has a dual-calibration system—before each switch, it runs a 10-second self-check to align the laser head and feeding system. Precision remains within ±0.005mm for both material types, meeting the strict standards of high-end manufacturing.
Q: Can it handle thick and thin materials equally well?
A: Yes. For thin materials (like 0.02mm FPC rolls), it uses low-power laser pulses to avoid burning; for thick materials (like 2mm PCB sheets), it increases laser power and adjusts drilling depth step-by-step. The software automatically calculates the optimal parameters based on material thickness, so you don’t need manual adjustments.
Q: Is training needed to operate the switching function?
A: Minimal training is required. The touchscreen interface is user-friendly—even new operators can learn to switch between materials in 30 minutes. Plus, manufacturers offer online tutorials and on-site support to help teams get up to speed quickly.
Some high-tech equipment makers focus on developing such flexible laser solutions, ensuring their products combine automation, precision, and adaptability to support global manufacturers. Their efforts help businesses streamline production and stay competitive in dynamic markets.
